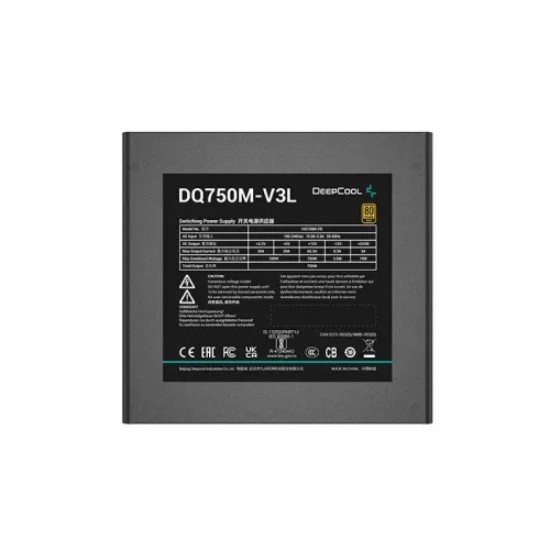

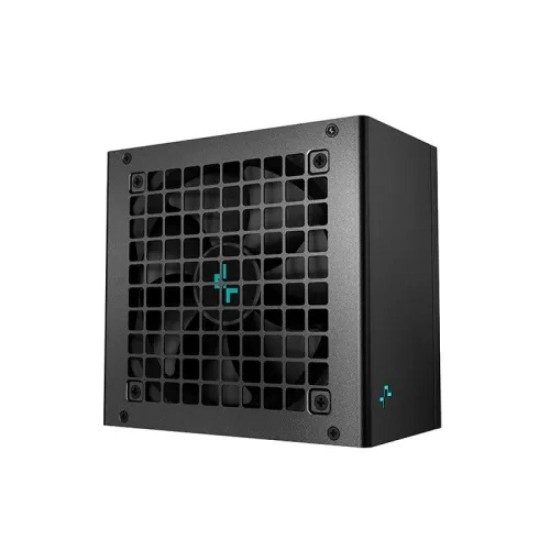

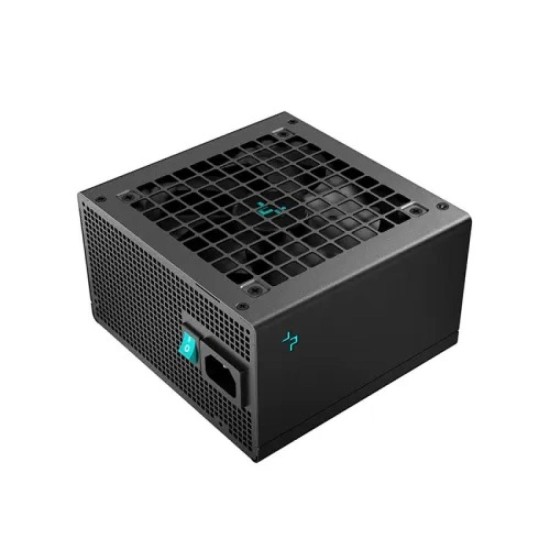

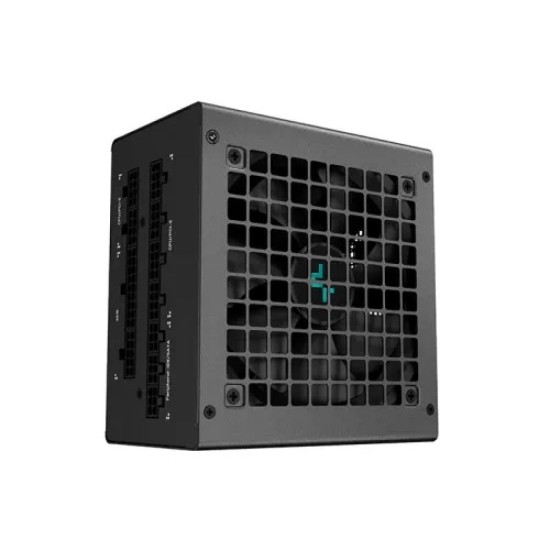

DeepCool DQ750M-V3L 80 Plus Gold Fully Modular Power Supply

Key Features

• Model: DQ750M-V3L
• 80 PLUS GOLD certified - Up to 91.2% efficiency
• 100% High quality Japanese capacitors
• Full bridge PFC + LLC Resonant converter
• Fully modular with flat cable design

  Specification

  Key Features
  Efficiency (Approx.)	≥90% Under Typical Load(50% Loading)
  Certification	80 PLUS Gold Certified
  Fan Size	120mm
  Input
  Frequency Range	50/60 Hz
  Output
  Modular Type	Full Modular
  Total Power	750 Watt
  Connector
  Main Power	24(20+4)Pin × 1
  CPU	CPU8Pin x 1 CPU8(4+4)Pin x 1
  PCI-E	PCI-E(6+2)Pin x 1
  SATA	SATA x 4
  Warranty Information
  Manufacturing Warranty	7 years

  Description

  DeepCool DQ750M-V3L 80 Plus Gold Fully Modular Power Supply

  The DeepCool DQ750M-V3L power supply is a cutting-edge power supply that combines efficiency and versatility. Users may adjust cable combinations with its Full Modular design, maximizing cable management for a tidy and orderly setup. The product dimensions are 150mm wide, 140mm long, and 86mm tall, provide a small form factor that fits effortlessly into a variety of computer cases. This DeepCool DQ750M-V3L power supply, which has a 80 Plus Gold accreditation which is designed to achieve great energy efficiency with low power consumption and running expenses. The DeepCool DQ750M-V3L120mm fan with Fluid Dynamic Bearing (FDB) guarantees effective cooling while reducing noise levels. The architecture of the The DeepCool DQ750M-V3L power supply comprises Active PFC, Full Bridge SRC LLC, and DC To DC technologies, which contribute to steady and dependable power delivery. It also has Full Japan Electrolytic Capacitors, highlighting the quality and endurance of its components. The Deepcool DQ750M-V3L is an elegant option for those looking for a completely modular, efficient, and high-performance power supply solution for their computing demands.
