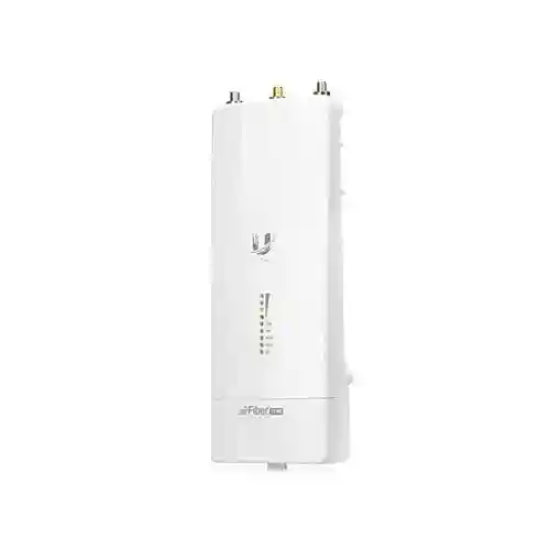

Ubiquiti airFiber AF-5XHD Gigabit Outdoor Point-to-Point Radio Device With POE Adapter

Ubiquiti airFiber AF-5XHD Gigabit Outdoor Point-to-Point Radio Device With POE Adapter – Description

The Ubiquiti airFiber AF-5XHD Gigabit Outdoor Point-to-Point Radio Device With POE Adapter is a high-performance outdoor networking solution designed for long-range point-to-point wireless connections. It delivers reliable gigabit-speed connectivity over extended distances, making it ideal for enterprise, ISP, and campus deployments.

This device features a single Gigabit Ethernet (GbE RJ45) interface and uses a passive PoE power method, with a 24V, 1A PoE adapter supporting a voltage range of 18–54V DC. Its external GPS antenna with magnetic base ensures precise synchronization and improved network accuracy. The maximum throughput exceeds 1 Gbps, and it can achieve ranges over 100 km in PtP master/slave mode, depending on environmental conditions.

For security, the airFiber AF-5XHD uses AES-256 encryption to safeguard wireless data transmissions. The device provides frequency accuracy of 0.2 ppm with GPS synchronization and 2.5 ppm without. Uplink and downlink duty cycles are fully programmable, and channel bandwidths are adjustable across 10/20/30/40/50/60/80/100 MHz.

Designed for outdoor use, the unit is IP67-rated, providing protection against dust and water ingress. Its compact and durable enclosure measures 224 x 82 x 48 mm and weighs 0.35 kg, while being compatible with airFiber X mount and Rocket mount systems. The package also includes a GPS pole mount for flexible installation.

The device operates reliably in temperatures from -40°C to 55°C (-40°F to 131°F), and its maximum TX power is 29 dBm, subject to regional regulations. It is certified by CE, FCC, and IC, ensuring compliance with global standards.

Buy Ubiquiti airFiber AF-5XHD Gigabit Outdoor Point-to-Point Radio Device With POE Adapter from PreKite

In Bangladesh, you can purchase the Ubiquiti airFiber AF-5XHD Gigabit Outdoor Point-to-Point Radio Device With POE Adapter from PreKite. We offer a wide collection of Ubiquiti networking products at competitive prices. Order online or visit your nearest PreKite store to get the best deal.

The Ubiquiti airFiber AF-5XHD Gigabit Outdoor Point-to-Point Radio Device With POE Adapter comes with a 1-year warranty.
