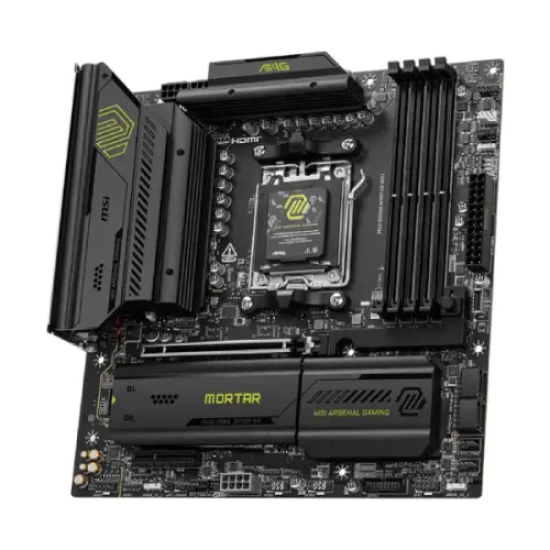

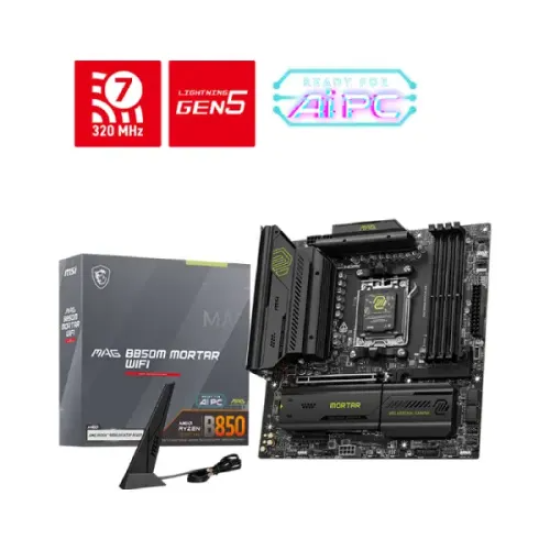

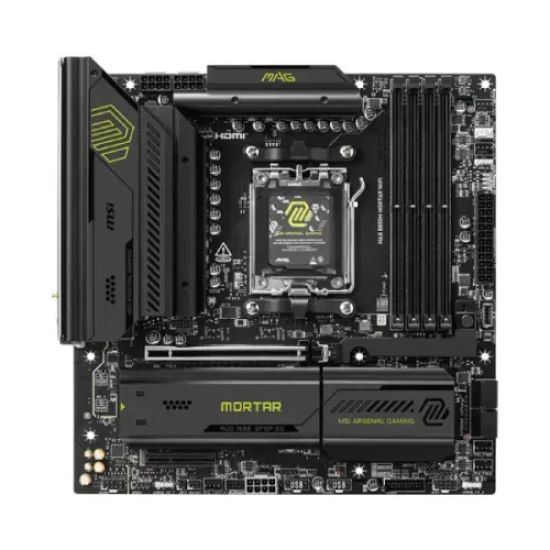

MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard

MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard
MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard
MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard
MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard
MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard
MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard
MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard
MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard
MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard
  • Stock: In Stock
  • Brand: Msi
  • Model: MAG B850M MORTAR WIFI
Payment Option
Buy Now

Key Features

  • Model: MAG B850M MORTAR WIFI
  • Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
  • Supported RAM: 4x DDR5, up to 8200 (OC) MT/s
  • Graphics Output: 1x HDMI, Storage: 3x M.2
  • Features: Realtek 8126-VB 5G LAN, Wi-Fi 7, Bluetooth 5.4
Specification
Basic Informations
Chipset AMD B850
Form Factor mATX 243.84mmx243.84mm
Supported CPU Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Connector & Ports
Audio 1x Front Audio (JAUD)
HDMI 1x HDMI
Internal I/O Ports 1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x Power Connector(PCIE_PWR 8pin) 1x CPU Fan 1x Combo Fan (Pump_Sys Fan) 4x System Fan 1x EZ Conn-header (JAF_1) 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 10Gbps Type C ports
LAN Port (s) Realtek 8126-VB 5G LAN
RAID • Supports RAID 0 , RAID 1 and RAID 10 for SATA storage devices • Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices *RAID 5 configuration is only supported by Ryzen™ 9000 series processors.
Supported Storage 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices 4x SATA 6G M2_1 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors) M2_3 slot • Supports up to PCIe 4.0 x2
TPM (Trusted Platform Module ) 1x TPM pin header(Support TPM 2.0) Others

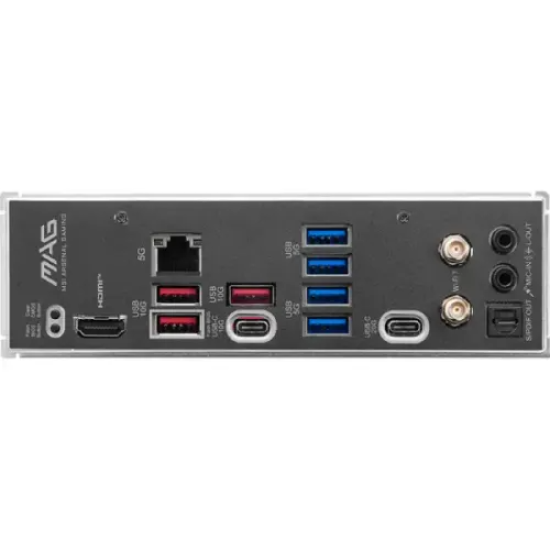

USB (s) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 3x USB 10Gbps Type A (Rear) 1x USB 10Gbps Type C (Rear) 1x USB 10Gbps Type C (Front) 1x USB 20Gbps Type C (Rear)
Wireless Communication module Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth 5.4, MLO, 4KQAM
Expansion Slots
M.2 Socket 3x M.2
PCI 1x PCI-E x16 slot 1x PCI-E x4 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processors)
Memory
Maximum Memory 256GB
Slots 4x DIMMs
Supported Memory Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen™ 9000 Series Processors max. overclocking frequency: • 1DPC 1R Max speed up to 8200+ MT/s • 1DPC 2R Max speed up to 6400+ MT/s • 2DPC 1R Max speed up to 6400+ MT/s • 2DPC 2R Max speed up to 4800+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPO™ Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only*
Type DDR5
Graphics
Graphics 1x HDMI Support HDMI 2.1 FRL, maximum resolution of 8K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Others
Special Features 4x EZ Debug LED 1x EZ Memory Detection LED
Warranty
Manufacturing Warranty 3 Years
Description

MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard


The MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard is a high-performance platform designed for gamers, power users, and professionals who want strong performance with advanced connectivity in a compact form factor. Built on the AMD B850 chipset, it supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors on the AM5 socket, delivering powerful computing performance with excellent upgrade potential.


High-Capacity DDR5 Memory Support


This motherboard supports up to 256GB of DDR5 memory across four dual-latch DIMM slots. It delivers memory speeds up to 8200+ MT/s (OC) depending on CPU and system configuration. With support for AMD EXPO, dual-channel architecture, JEDEC standards, non-ECC UDIMM, and CUDIMM clock driver bypass mode, users get maximum compatibility and overclocking flexibility for demanding workloads and gaming.


Powerful Power Delivery & Durable Build


Featuring a robust 12+2+1 Duet Rail Power System with dual 8-pin CPU power connectors, this motherboard ensures stable power delivery for high-performance processors. Technologies like Core Boost and Memory Boost enhance system efficiency and overclocking stability.


Built with an 8-layer PCB using 2oz thickened copper, it improves power efficiency, signal integrity, and heat management for long-term reliability.


Advanced Storage & Expansion


The MSI MAG B850M MORTAR WIFI includes:

1x PCIe 5.0 x16 slot for next-gen graphics cards

1x PCIe 4.0 x4 slot for expansion devices

3x M.2 slots (two support PCIe 5.0 x4 with Ryzen 9000/7000 CPUs, one PCIe 4.0 x2 via chipset)

4x SATA 6Gbps ports


Storage RAID support includes RAID 0/1/10 for SATA and RAID 0/1/5 for NVMe, with RAID 5 available for Ryzen 9000 processors, providing flexibility for performance or data protection setups.


Advanced Thermal Solution


MSI’s Frozr Guard thermal design ensures stable cooling with extended heatsinks, high-performance 7W/mK thermal pads, improved choke cooling, and EZ M.2 Shield Frozr II. These features help maintain optimal SSD and component temperatures while reducing throttling during heavy usage.


Next-Generation Connectivity

This motherboard offers cutting-edge networking with:

Wi-Fi 7 for ultra-fast wireless performance

Bluetooth 5.4 for seamless device pairing

Realtek 8126-VB 5G LAN for high-speed wired networking


These options ensure smooth gaming, streaming, and professional productivity.

Extensive USB & Display Support


Connectivity includes multiple USB ports:

Front: USB 2.0, USB 5Gbps Type-A, USB 10Gbps Type-C

Rear: USB 5Gbps Type-A, USB 10Gbps Type-A, USB 20Gbps Type-C

Additional 10Gbps Type-C on both front and rear panels

For integrated graphics users, an HDMI 2.1 FRL port supports up to 8K resolution at 60Hz, depending on the processor.


Audio is powered by the Realtek ALC4080 codec with 7.1-channel HD sound, 32-bit/384kHz playback, S/PDIF output, and enhanced by Audio Boost 5 for premium sound quality.


Easy Installation & Troubleshooting

MSI includes user-friendly features such as:

EZ PCIe Release

EZ M.2 Clip II

EZ Antenna

EZ Debug LEDs & EZ Memory Detection LED

These tools simplify installation, upgrades, and troubleshooting.

With its compact 243.84mm x 243.84mm mATX form factor, powerful power delivery, advanced cooling, and future-ready connectivity, the MSI MAG B850M MORTAR WIFI is one of the most capable AM5 motherboards for high-performance builds.


Buy MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard from PreKite


In Bangladesh, you can purchase the original MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard from PreKite. We offer a wide range of the latest MSI motherboards for your desktop PC build. Order online or visit your nearest PreKite store to get it at the best price.


The MSI MAG B850M MORTAR WIFI AM5 mATX Motherboard comes with a 3-year warranty.
