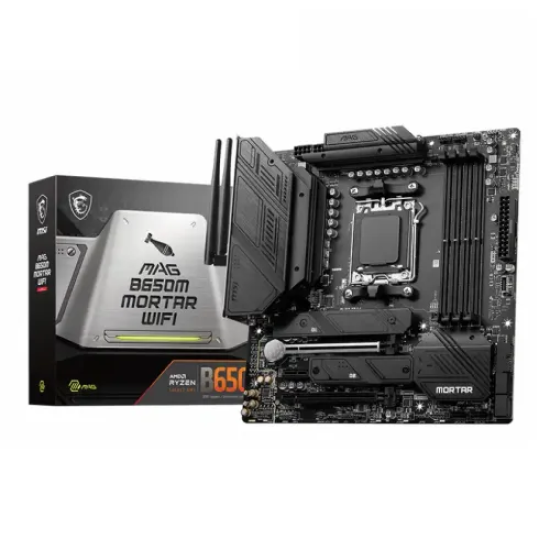

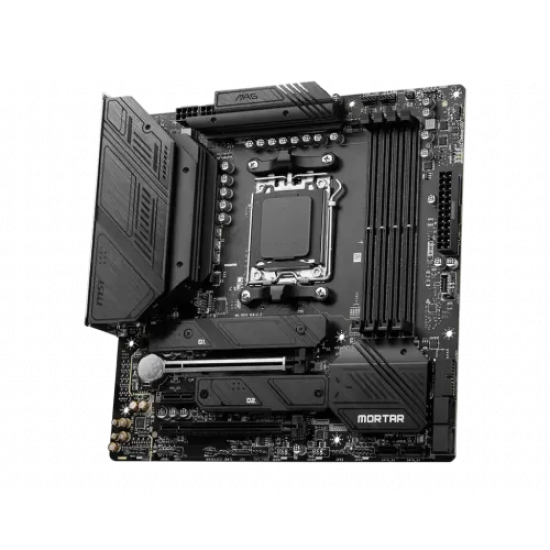

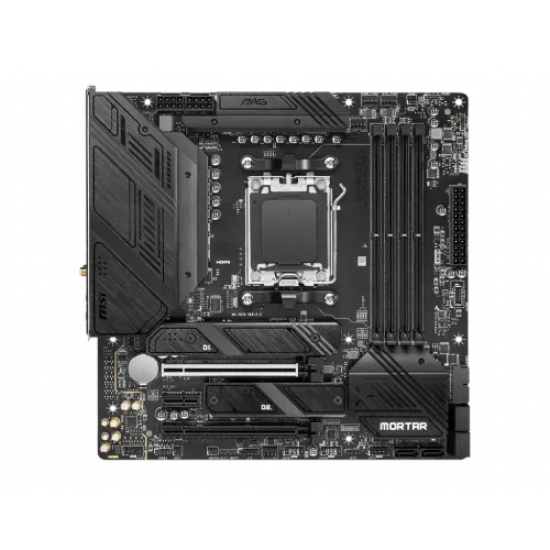

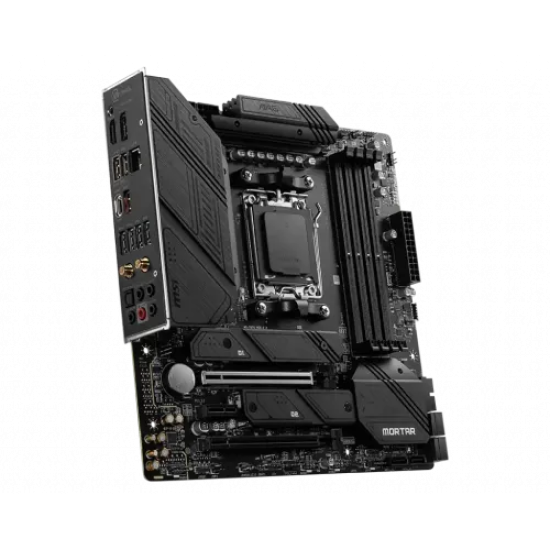

MSI MAG B650M MORTAR WIFI DDR5 AMD AM5 mATX Motherboard

MSI MAG B650M MORTAR WIFI DDR5 AMD AM5 mATX Motherboard

The MSI MAG B650M MORTAR WIFI DDR5 AMD AM5 mATX Motherboard is engineered for gamers and performance users who want durability, speed, and next-generation features in a compact form factor. Designed to support AMD Ryzen 8000 and 7000 Series processors with up to 16 Zen 4 cores, this motherboard provides strong multitasking capability and smooth gaming performance on the AM5 platform.

DDR5 Memory & Optimized Power Delivery

This board supports dual-channel DDR5 memory with a maximum capacity of 128GB, delivering overclocked speeds up to 6400+ MHz (OC). MSI integrates a robust 12+2+1 Duet Rail Power System along with dual 8-pin CPU power connectors to ensure consistent and stable power delivery. With Core Boost and Memory Boost technologies, users can expect improved efficiency and enhanced system stability under load.

Advanced Cooling & Premium PCB Design

To maintain peak performance, the motherboard features an Extended Heatsink design, 7W/mK-rated MOSFET thermal pads, additional choke thermal pads, and a double-sided M.2 Shield Frozr. These thermal solutions help reduce heat buildup and prevent SSD throttling during intensive tasks.

The board is constructed using an 8-layer PCB with 2oz thickened copper and server-grade materials, enhancing durability, signal integrity, and long-term reliability.

High-Speed Expansion & Storage

For gaming and fast data transfers, the MSI MAG B650M MORTAR WIFI includes:

PCIe 4.0 slots for modern graphics cards

Lightning Gen 5 x4 M.2 slot for next-generation NVMe SSDs

Additional M.2 support with double-sided Shield Frozr

USB 3.2 Gen 2x2 Type-C with up to 20Gbps transfer speed, offering four times faster performance compared to USB 3.2 Gen 1

These features ensure fast game loading, smooth system responsiveness, and excellent storage performance.

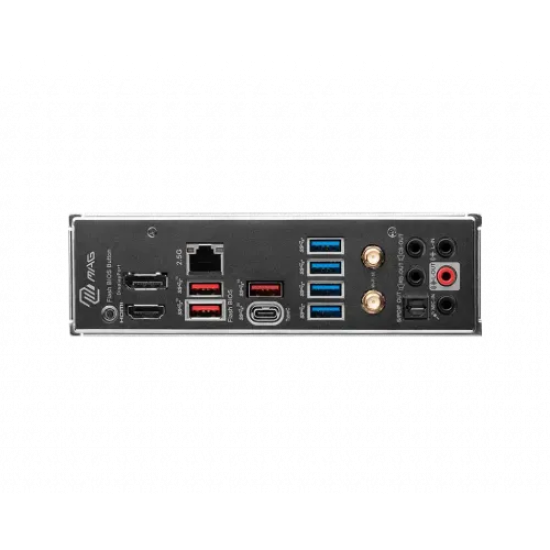

Convenient Rear I/O & Smart Features

The rear I/O panel is designed for user convenience, offering features such as:

Easy access to Safe Boot

One-click RGB control

Direct Turbo mode activation

With built-in USB 3.2 Gen 2x2 ports delivering up to 20Gbps speeds, users can connect high-speed external devices effortlessly.

Built for Reliable Gaming

The MSI MAG B650M MORTAR WIFI DDR5 motherboard combines strong power delivery, efficient cooling, and high-speed connectivity in a micro-ATX form factor. Whether you're building a new AMD gaming PC or upgrading your system, this board delivers dependable performance and modern features for a seamless computing experience.

The MSI MAG B650M MORTAR WIFI DDR5 AMD AM5 mATX Motherboard comes with a 3-year warranty.
