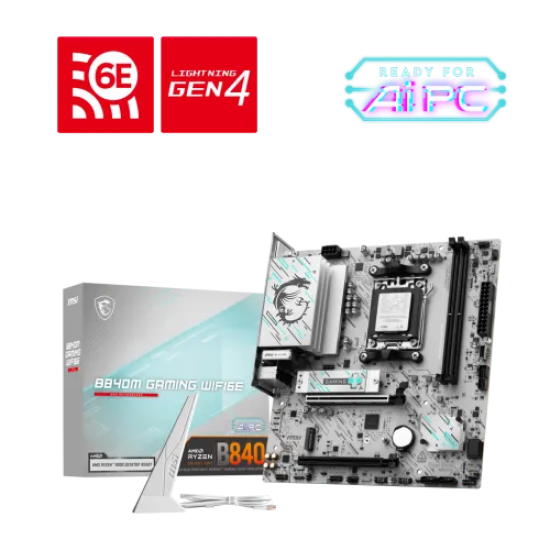

MSI B840M GAMING WIFI6E AM5 mATX Motherboard

Stock: In Stock
Brand: Msi
Model: B840M GAMING WIFI6E

Based on 0 reviews. - Write a review

Payment Option

19,400৳

Cash Discount Price

Online / Cash Payment

3,460৳/ month

Regular Price: 20,758৳

0% EMI for up to 6 Months***

Buy Now

Buy Now Add to Compare

Add to Wish List Add to Compare

Key Features

Model: B840M GAMING WIFI6E
Supported CPU: Ryzen 9000/ 8000/ 7000 Series Processors for Socket AM5
Supported RAM: 2x DDR5, up to 8000 (OC) MT/s
Graphics Output: 1x HDMI, 1x DisplayPort
Features: Realtek 8125D 2.5G LAN, Wi-Fi 6E, Bluetooth 5.3

View more info

Specification

Basic Informations
BIOS	Flash BIOS Button
Chipset	AMD B840
Form Factor	mATX 226mmx243.84mm
Supported CPU	Supports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Socket AM5
Connector & Ports
Audio	1x Front Audio (JAUD)
Display Port (s)	1x DisplayPort 1.4
HDMI	1x HDMI 2.1
Internal I/O Ports	1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Com Port (JCOM) 3x Addressable V2 RGB LED connector (JARGB_V2) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports
LAN Port (s)	Realtek 8125D 2.5G LAN
RAID	Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supported Storage	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
TPM (Trusted Platform Module )	1x TPM pin header(Support TPM 2.0)
USB (s)	2x USB 2.0 (Rear) 4x USB 2.0 (Front) 4x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front)
Wireless Communication module	Wi-Fi 6E Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3, FIPS, FISMA
Expansion Slots
M.2 Socket	2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G
PCI	2x PCI-E x16 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset) PCI_E1 slot Supports PCIe 4.0 x16 (For Ryzen™ 9000/ 7000 Series processors) Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)
Memory
Maximum Memory	128GB
Slots	2 x UDIMM
Supported Memory	Memory Support DDR5 8000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s Ryzen 9000 Series Processors max. overclocking frequency: 1DPC 1R Max speed up to 8000+ MT/s 1DPC 2R Max speed up to 7200+ MT/s Supports AMD POR Speed and JEDEC Speed Supports Memory Overclocking and AMD EXPOTM Supports Dual-Channel mode Supports Non-ECC, Un-buffered memory Supports CUDIMM, Clock Driver bypass mode only
Type	DDR5
Graphics
Graphics	1x HDMI Support HDMI 2.1, maximum resolution of 4K 60Hz 1x DisplayPort Support DisplayPort 1.4, maximum resolution of 4K 60Hz
Others
Special Features	4x EZ Debug LED 1x EZ Memory Detection LED

Description

MSI B840M GAMING WIFI6E AM5 mATX Motherboard

The MSI B840M GAMING WIFI6E AM5 mATX Motherboard is designed for gamers and performance-focused users who want next-generation speed and reliable stability in a compact build. Built on the AMD B840 chipset and AM5 socket, it supports the latest Ryzen 9000, 8000, and 7000 Series desktop processors, ensuring strong performance and long-term platform compatibility.

High-Speed DDR5 Memory Support

This motherboard features dual DDR5 UDIMM slots with support for up to 128GB of memory. It handles speeds from DDR5 4800 MT/s up to 8000+ MT/s (OC) depending on CPU capability. With support for AMD EXPO, JEDEC standards, dual-channel architecture, and non-ECC unbuffered modules, users can enjoy improved responsiveness and stable high-speed operation. Advanced memory tuning features also enhance reliability during intensive workloads.

Graphics & Display Output

For high-quality visuals, the board includes:

1× HDMI 2.1

1× DisplayPort 1.4

Both outputs support 4K resolution at 60Hz, delivering sharp and immersive visuals for gaming, streaming, and creative applications.

Expansion & PCIe Configuration

The MSI B840M GAMING WIFI6E offers flexible expansion with:

Primary PCIe 4.0 x16 slot for high-performance GPUs

Secondary PCIe 3.0 x4 slot for additional expansion cards

PCIe lane allocation adapts based on the installed Ryzen processor, ensuring optimal compatibility and performance.

Fast Storage Options

Storage capabilities include:

2× M.2 PCIe 4.0 x4 slots (supporting 2260/2280 SSDs)

4× SATA 6Gbps ports with RAID 0, 1, and 10 support

This setup enables both high-speed storage performance and secure data configurations.

Advanced Networking & Wireless Connectivity

Equipped with Realtek 8125D 2.5G LAN, the motherboard provides fast and stable wired networking. It also includes built-in Wi-Fi 6E, supporting 2.4GHz, 5GHz, and 6GHz bands with speeds up to 2.4Gbps, along with Bluetooth 5.3 for seamless wireless device connectivity.

Extensive USB & Internal Headers

Connectivity options include multiple USB ports:

USB 2.0 (rear and front)

USB 5Gbps Type-A (rear and front)

USB 5Gbps Type-C (front)

Internal headers support RGB and ARGB lighting, system fans, TPM, and front-panel audio connections, allowing full customization and expandability.

Smart Design & Easy Troubleshooting

The board features EZ Debug LEDs and EZ Memory Detection LED to simplify installation and system diagnosis. RGB and addressable RGB headers allow users to create visually impressive gaming setups.

With its micro-ATX form factor (226mm × 243.84mm), this motherboard fits easily into compact cases while delivering powerful performance, high-speed networking, and advanced storage capabilities.

The MSI B840M GAMING WIFI6E AM5 motherboard is a strong choice for gamers and creators looking for a compact, feature-rich, and future-ready AM5 platform.

Buy MSI B840M GAMING WIFI6E from PreKite

In Bangladesh, you can purchase the original MSI B840M GAMING WIFI6E AM5 mATX Motherboard from PreKite. We offer a wide selection of the latest MSI motherboards for your desktop build at competitive prices.

Order online or visit your nearest PreKite store to get it at the best price. The MSI B840M GAMING WIFI6E comes with a 3-year manufacturer warranty.
