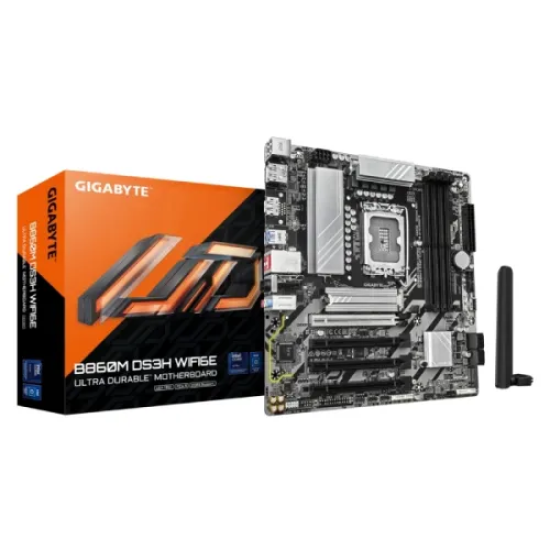

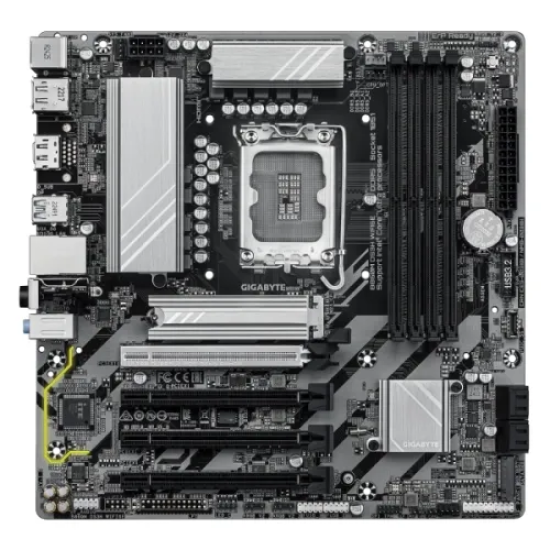

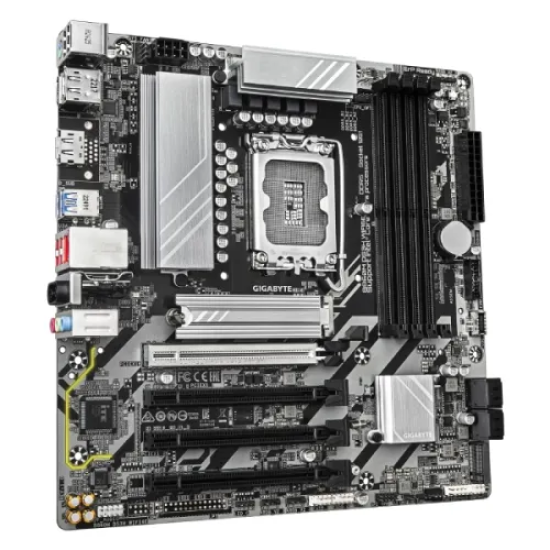

Name: Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard
Brand: GIGABYTE
Price: 24000.00 BDT
Availability: InStock

Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard

Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard

Stock: In Stock
Brand: GIGABYTE
Model: B860M DS3H WIFI6E

Based on 0 reviews. - Write a review

Payment Option

24,000৳

Cash Discount Price

Online / Cash Payment

4,280৳/ month

Regular Price: 25,680৳

0% EMI for up to 6 Months***

Buy Now

Buy Now Add to Compare

Add to Wish List Add to Compare

Key Features

Key Features
Model: B860M DS3H WIFI6E
Supported CPU: Intel Core Ultra Processors, LGA1851 socket
Supported RAM: 4x DDR5, Max 256GB, Supports Up to 9066 (O.C)
Graphics Output: 2x DisplayPort, 1x HDMI port
Features: 2x M.2 slots, Realtek 2.5GbE LAN, Intel Wi-Fi 6E AX211

View more info

Specification

Basic Informations
Audio	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
BIOS	1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Chipset	Intel B860 Express Chipset
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm
Supported CPU	LGA1851 socket: Support for Intel Core Ultra Processors L3 cache varies with CPU
Connector & Ports
Audio	3 x audio jacks
Display Port (s)	2 x DisplayPort
HDMI	1 x HDMI port

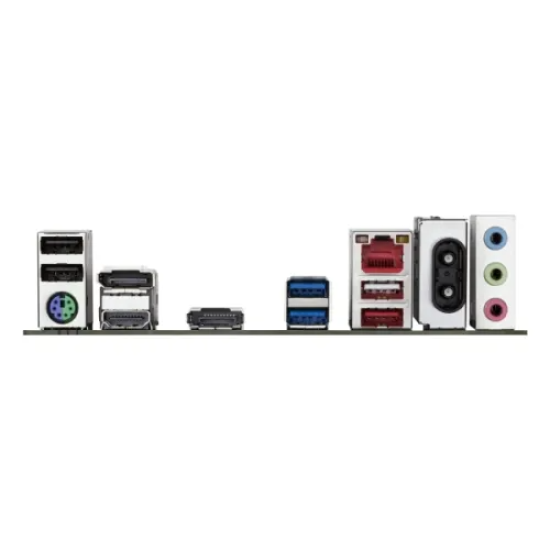

Internal I/O Ports	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 2 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 keyboard/mouse port 1 x HDMI port (Note) 2 x DisplayPorts (Note) 1 x USB 3.2 Gen 2 Type-A port (red) 2 x USB 3.2 Gen 1 ports 3 x USB 2.0/1.1 ports 2 x antenna connectors (2T2R) 1 x RJ-45 port 3 x audio jacks (Note) Actual support may vary by CPU.
LAN Port (s)	Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Supported Storage	CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2N_SB) - 4 x SATA 6Gb/s connectors
TPM (Trusted Platform Module )	1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
USB (s)	Chipset: - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 3 x USB 2.0/1.1 ports on the back panel Chipset+USB 2.0 Hub: - 4 x USB 2.0/1.1 ports available through the internal USB headers
Wireless Communication module	Intel Wi-Fi 6E AX211 (PCB rev. 1.0) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard Realtek Wi-Fi 6E RTL8852CE (PCB rev. 1.1) - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Expansion Slots
M.2 Socket	CPU: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2N_SB)
PCI	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 3 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_1/2/3)
Memory
Slots	4 x DIMM
Type	DDR5
Graphics
Graphics	Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. - 2 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 2.1 version. (Graphics specifications may vary depending on CPU support.) Support for up to triple-display at the same time
Others
Bundled Software	Norton Internet Security (OEM version) LAN bandwidth management software
Special Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Smart Backup
Warranty
Manufacturing Warranty	3 Year

Description

Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard

The Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX motherboard supports Intel Core Ultra CPUs. Its Intel B860 Express chipset provides exceptional performance, with support for up to 256GB of DDR5 RAM and overclocking rates of up to 9066 MT/s. This dual-channel memory architecture improves multitasking and responsiveness, making it suitable for gaming, content creation, and professional applications. The Gigabyte B860M DS3H WIFI6E motherboard offers Intel HD Graphics, allowing for triple-display output via HDMI and dual DisplayPort connectors, with resolutions of up to 4096x2160 at 60Hz and 3840x2160 at 144Hz, resulting in smooth and immersive images. The Gigabyte B860M DS3H WIFI6E LGA1851 motherboard includes a PCIe 5.0 M.2 slot for high-speed NVMe SSDs, a second PCIe 4.0 M.2 slot, and four SATA 6Gb/s ports that support RAID 0, 1, 5, and 10. A PCIe 5.0 x16 slot is reserved for powerful GPUs or NVMe storage, while three PCIe 4.0 x1 slots are available for extra devices. The Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX motherboard improves network connectivity with Realtek 2.5GbE LAN and Intel Wi-Fi 6E, which offer dual-band frequencies for quicker and more robust wireless connections, as well as Bluetooth 5.3 for easy device pairing. The Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX motherboard has broad USB connection, including USB 3.2 Gen 2 and Gen 1 ports, as well as USB Type-C support.

Buy Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard from preKite

In Bangladesh, you can get original Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard from preKite. We have a large collection of latest Gigabyte Motherboard to Purchase for your Desktop PC. Order Online Or Visit your Nearest preKite Shop to get yours at lowest price. The Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard comes with a 3-year Warranty.

Review

What is the Gigabyte B860M DS3H WIFI6E LGA1851 Micro ATX Motherboard price in bd 2026?

The GIGABYTE B860M DS3H WIFI6E Desktop Components price in BD is 24,000৳. In today's market on 21-06-2026. The GIGABYTE B860M DS3H WIFI6E Desktop Components is In Stock now in our store (Call us to know about details of this product). 5 customer buy this product From 1128 visitors. Follow us on Facebook to stay updated with the latest offers. Subscribe our YouTube channel for product reviews. You can Order GIGABYTE B860M DS3H WIFI6E online, pay with online payment gateway or Cash on delivery (in Dhaka city) and get 2-3 day Express delivery anywhere in Bangladesh or visit our Showroom for more gift.
