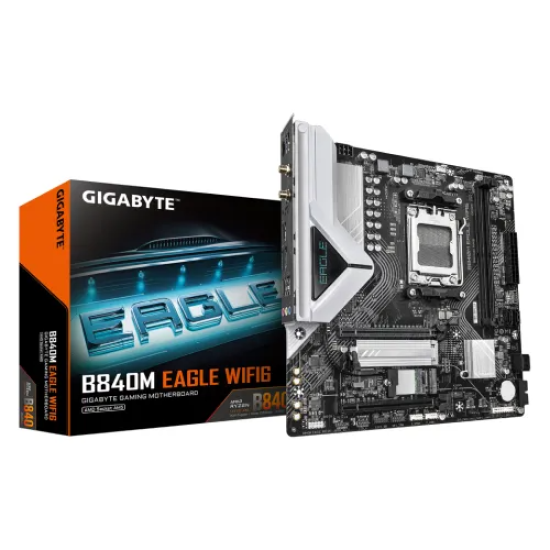

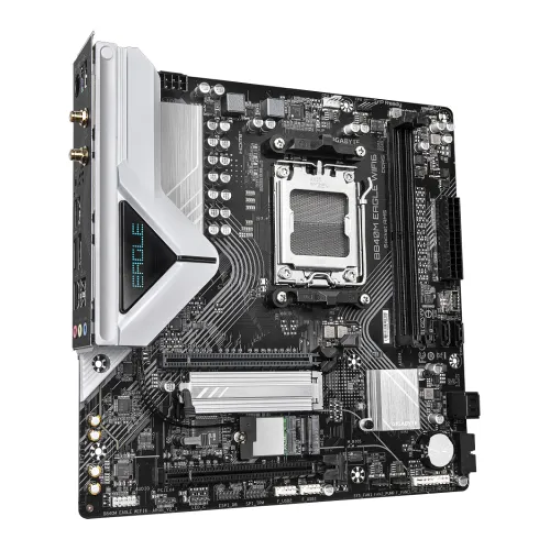

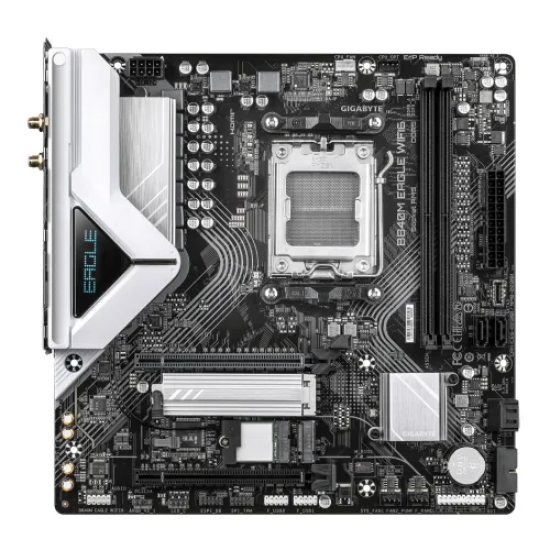

GIGABYTE B840M EAGLE WIFI6 AMD AM5 Motherboard
The GIGABYTE B840M EAGLE WIFI6 AMD AM5 Motherboard is designed to deliver reliable performance and modern connectivity for next-generation PC builds. Built on the AMD Socket AM5 platform, this motherboard supports AMD Ryzen 9000, 8000, and 7000 Series processors, making it a solid foundation for gaming, productivity, and everyday computing.
Powered by the AMD B840 chipset, the board features a 5+2+2 phase digital VRM power design that provides consistent and stable power delivery to the CPU. This ensures dependable system performance even during demanding tasks.
The motherboard supports dual-channel DDR5 memory with a capacity of up to 128GB across two DIMM slots. With overclocked speeds reaching 7600 MT/s, users can experience faster data processing and improved system responsiveness. Compatibility with AMD EXPO and Intel XMP profiles allows easy memory tuning, while D5 Bionic Corsa technology helps optimize overall memory efficiency.
For storage and expansion, the board includes two M.2 slots and four SATA 6Gb/s ports, supporting RAID configurations such as RAID 0, 1, 5, and 10 for flexible storage solutions. The motherboard also features EZ-Latch designs on both PCIe and M.2 slots, allowing tool-free installation and quick hardware upgrades.
Thermal performance is enhanced with VRM Thermal Armor Advanced and M.2 Thermal Guard, helping maintain stable temperatures and preventing performance throttling of high-speed storage devices.
The PCIe UD Slot is engineered with reinforced construction to provide up to 10 times stronger support for graphics cards, improving durability while also assisting with heat management.
For display output, the motherboard supports integrated AMD Radeon Graphics, offering DisplayPort 1.4 with resolutions up to 3840×2160 at 144Hz and HDMI 2.1 with resolutions up to 4096×2160 at 60Hz, including HDR support for improved visual quality.
Networking capabilities include Realtek 2.5GbE LAN for high-speed wired connections and Realtek Wi-Fi 6 with Bluetooth 5.3, delivering fast and stable wireless connectivity for gaming, streaming, and online work.
Expansion options include a PCIe 4.0 x16 slot from the CPU for graphics cards and a PCIe 3.0 x4 slot from the chipset for additional expansion devices. Connectivity is further enhanced with USB 3.2 Gen1 ports, a USB Type-C header, and multiple USB 2.0 ports for various peripherals.

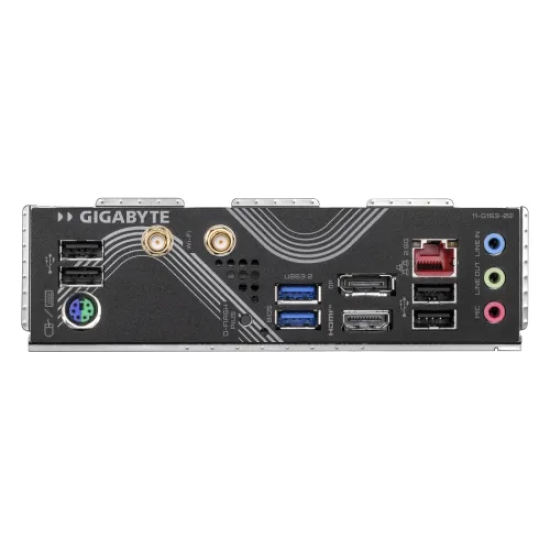

The motherboard also offers a wide range of internal connectors, including ATX power connectors, multiple fan and pump headers, RGB Gen2 headers, TPM header, and a Clear CMOS jumper. The rear I/O panel includes PS/2 port, Q-Flash Plus button, SMA antenna connectors, RJ-45 LAN port, audio jacks, HDMI, and DisplayPort outputs.
With a 256 Mbit AMI UEFI BIOS, the motherboard supports useful features such as Q-Flash for easy BIOS updates, Smart Backup, and GIGABYTE Control Center (GCC) software for system management.
Built in a Micro-ATX form factor, the GIGABYTE B840M EAGLE WIFI6 is compatible with Windows 11 and Windows 10 (64-bit), making it a reliable choice for modern AMD-based PC systems.
Buy GIGABYTE B840M EAGLE WIFI6 Motherboard from PreKite
In Bangladesh, you can purchase the original GIGABYTE B840M EAGLE WIFI6 Motherboard from PreKite. PreKite offers a wide selection of the latest GIGABYTE motherboards for building or upgrading your desktop PC. You can order online or visit a PreKite store to get this motherboard at a competitive price. The GIGABYTE B840M EAGLE WIFI6 Motherboard comes with a 3-year warranty.
