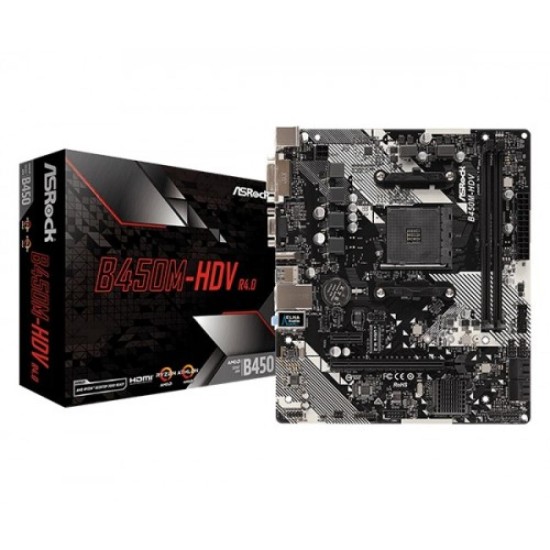

ASRock B450M-HDV R4.0 AMD Motherboard

ASRock B450M-HDV R4.0 AMD Motherboard
ASRock B450M-HDV R4.0 AMD Motherboard
  • Stock: In Stock
  • Brand: ASRock
  • Model: ASRock B450M-HDV R4.0
Based on 0 reviews. - Write a review
Payment Option
Buy Now
Buy Now Add to Compare
Add to Wish List Add to Compare

Key Features

  • Memory 32 GB
  • AMD Promontory B450
  • Windows 10; 64-bit
  • 1 PCIe 3.0 x16, 1 PCIe 2.0 x1
View more info
Specification
Basic Informations
Chipset - AMD Promontory B450
Form Factor - Micro ATX Form Factor: 9.1-in x 8.1-in, 23.1 cm x 20.6 cm
Supported CPU AMD AM4 Socket - Digi Power design - Supports CPU up to 105W
Connector & Ports
LAN Port (s) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
Supported Storage - 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug - 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU) - Supports NVMe SSD as boot disks - Supports ASRock U.2 Kit
Expansion Slots
M.2 Socket - 1 x Screw for M.2 Socket - 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon 2xxGE series APU)*
PCI AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)* AMD Ryzen series CPUs (Raven Ridge) - 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)* AMD Athlon series CPUs - 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)* - 1 x PCI Express 2.0 x1 Slot
Memory
Type - Dual Channel DDR4 Memory Technology
Connectivity
Audio Jack - 7.1 CH HD Audio (Realtek ALC887 Audio Codec) - Supports Surge Protection - ELNA Audio Caps
Graphics
Max Shared Memory - Max Shared memory supports up to 16GB - The Max shared memory 16GB requires 32GB system memory installed
Description

ASRock B450M-HDV R4.0 AMD Motherboard


The ASRock B450M-HDV R4.0 motherboard is a compact and dependable micro-ATX solution built around the AMD AM4 socket and B450 chipset. Designed for Ryzen processors and APUs, it delivers stable performance for daily computing, productivity tasks, and entry-level gaming systems.

Processor Support

This board supports AMD Ryzen CPUs and APUs with up to 105W TDP, including models with integrated Vega graphics. It provides reliable performance for both general use and multimedia applications.

Memory Support

Equipped with Dual Channel DDR4 technology, the motherboard includes:

2 x DDR4 DIMM slots

Support for up to 32GB of system memory

Compatibility with DDR4 speeds up to 3200MHz (OC), depending on CPU

Support for both ECC and non-ECC unbuffered memory (varies by processor)

High-quality 15μ gold contacts in DIMM slots for improved durability

Storage Options

For fast and flexible storage configurations, it features:

PCIe Gen3 x4 Ultra M.2 slot with data speeds up to 32Gb/s

Support for SATA3 6Gb/s M.2 modules

SATA3 6Gb/s ports for traditional SSDs and HDDs

Compatibility with U.2 PCIe Gen3 x4 SSD solutions (via optional kit)

Graphics & Display Output

When paired with a compatible Ryzen APU, the motherboard provides:

HDMI port (supports up to 4K UHD resolution)

DVI-D port

D-Sub (VGA) port

It supports triple-monitor setups and offers features such as HDCP 1.4 compliance, high bit rate audio over HDMI, Deep Color, and smooth 4K Ultra HD playback (with supported monitors).

Networking & Connectivity

The board includes a Realtek RTL8111H Gigabit LAN controller with:

10/100/1000 Mb/s network speeds

Wake-On-LAN support

Energy Efficient Ethernet (802.3az)

PXE boot capability

Built-in lightning and ESD protection

BIOS & System Features

128Mb AMI UEFI BIOS with graphical interface

Plug and Play support

ACPI 5.1 compliance

DRAM voltage adjustment

SMBIOS support

Build Quality & Design

The motherboard is built with High Density Glass Fabric PCB technology, helping reduce moisture-related electrical issues and enhancing overall durability. The solid PCB construction ensures long-term reliability and stable system performance.

Included Accessories

Quick Installation Guide

Support CD

I/O Shield

2 x SATA Data Cables

1 x M.2 mounting screw
