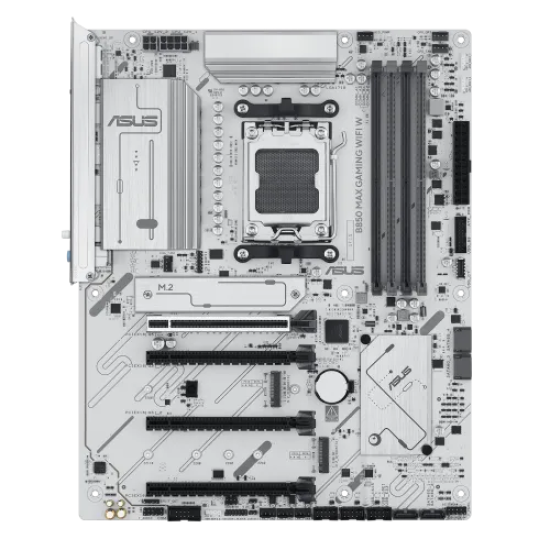

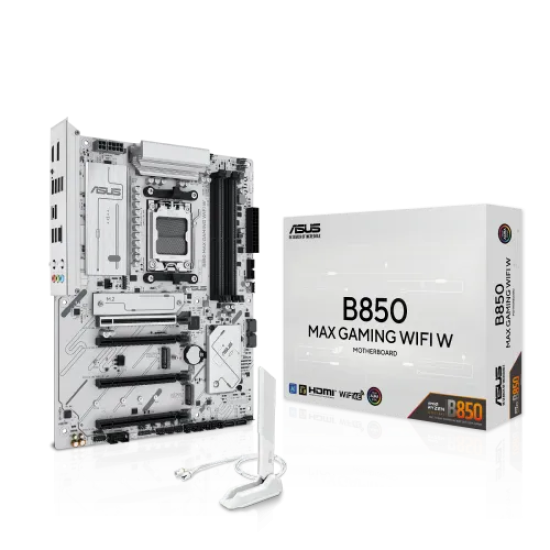

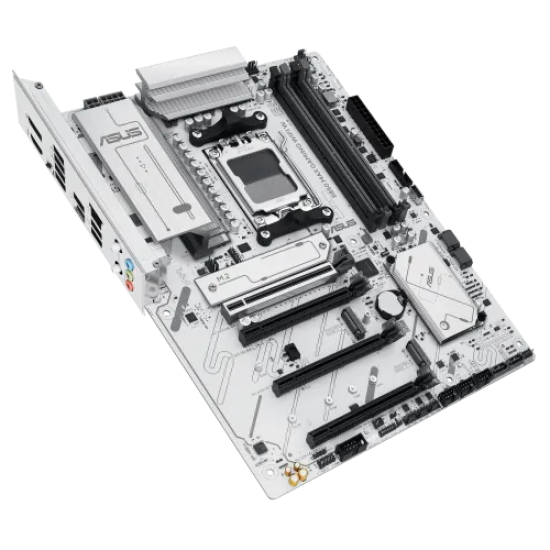

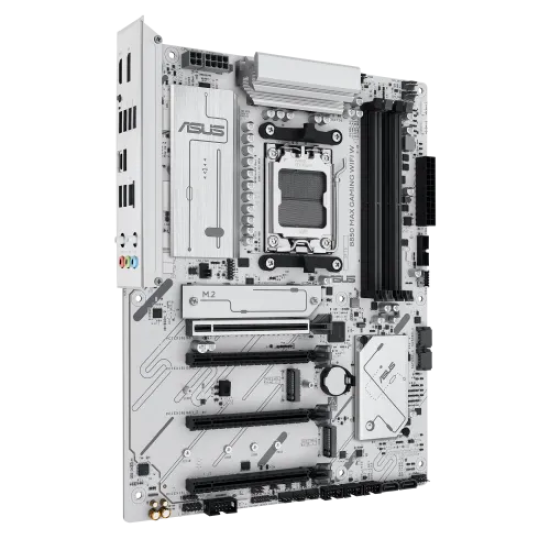

Asus B850 MAX GAMING WIFI W AM5 ATX Motherboard

Asus B850 MAX GAMING WIFI W AM5 ATX Motherboard
Asus B850 MAX GAMING WIFI W AM5 ATX Motherboard
Asus B850 MAX GAMING WIFI W AM5 ATX Motherboard
Asus B850 MAX GAMING WIFI W AM5 ATX Motherboard
Asus B850 MAX GAMING WIFI W AM5 ATX Motherboard
Asus B850 MAX GAMING WIFI W AM5 ATX Motherboard
Asus B850 MAX GAMING WIFI W AM5 ATX Motherboard
Asus B850 MAX GAMING WIFI W AM5 ATX Motherboard
Asus B850 MAX GAMING WIFI W AM5 ATX Motherboard
Asus B850 MAX GAMING WIFI W AM5 ATX Motherboard
Asus B850 MAX GAMING WIFI W AM5 ATX Motherboard
  • Stock: In Stock
  • Brand: ASUS
  • Model: B850 MAX GAMING WIFI W
Based on 0 reviews. - Write a review
Payment Option
Buy Now
Buy Now Add to Compare
Add to Wish List Add to Compare

Key Features

  • Key Features
  • Model: B850 MAX GAMING WIFI W
  • Supported CPU: Ryzen 9000/8000 & 7000 Series Processors for AM5 Socket
  • Supported Memory: 4 x DIMM, Max. 256GB, DDR5 Up to 8000+MT/s(OC)
  • Graphics Output: 1 x HDMI port, 1 x DisplayPort
  • Features: Realtek 2.5Gb Ethernet, Realtek 7.1 High Definition Surround Sound
View more info
Specification
Basic Informations
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers - Audio cover A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
BIOS 256 Mb Flash ROM, UEFI AMI BIOS
Chipset AMD B850 Chipset
Form Factor ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Supported CPU Supported CPU AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Connector & Ports
Audio Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback
Display Port (s) 1 x DisplayPort
HDMI 1x HDMI 2.1

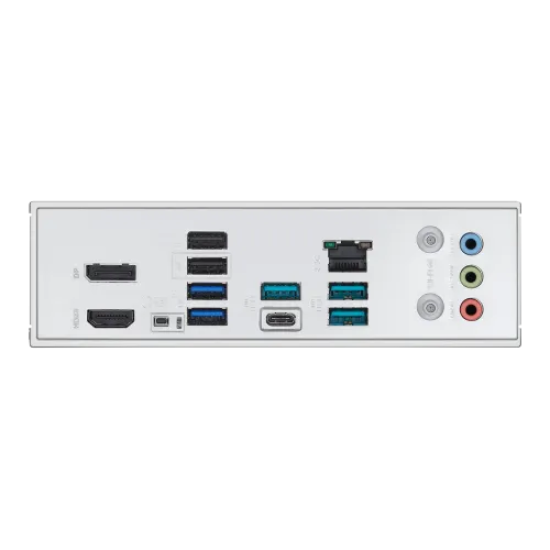

Internal I/O Ports Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power Related 1 x 24-pin Main Power connector 1 x 8-pin +12V CPU Power connectors 1 x 4-pin +12V CPU Power connectors Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 5Gbps connector (supports USB Type-C® ) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports Miscellaneous 3 x Addressable RGB Gen 2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x S/PDIF Out header 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin System Panel header 1 x Thunderbolt™ (USB4®) header Back Panel I/O Ports: 1 x USB 10Gbps port (1 x USB Type-C®) 3 x USB 10Gbps ports (3 x Type-A) 2 x USB 5Gbps ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi module 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button
LAN Port (s) 1 x Realtek 2.5Gb Ethernet
RAID AMD RAIDXpert2 Technology Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10
Supported Storage Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode) AMD B850 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports Specifications vary by CPU types.
TPM (Trusted Platform Module ) 1 x SPI TPM header (14-1 pin)
USB (s) Rear USB (Total 8 ports) 4 x USB 10Gbps port(s) (3 x Type-A + 1 x USB Type-C) 2 x USB 5Gbps ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 9 ports) 1 x USB 5Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports USB Type-C power delivery output: max. 5V/3A
Wireless Communication module Wi-Fi 6E 2x2 Wi-Fi 6E (802.11ax) Supports 2.4/5/6GHz frequency band Bluetooth® v5.3 WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later. The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Expansion Slots
M.2 Socket AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode) AMD B850 Chipset M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode) 4 x SATA 6Gb/s ports Specifications vary by CPU types.
PCI AMD Ryzen™ 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen™ 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) AMD B850 Chipset 1 x PCIe 4.0 x16 slot (support x4 mode) 2 x PCIe 3.0 x16 slots (support x1 mode)
Memory
Maximum Memory 256GB
Slots 4 x DIMM
Supported Memory Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM Dual-channel memory architecture Supports AMD Extended Profiles for Overclocking (EXPO™) ASUS Enhanced Memory Profile (AEMP)
Type DDR5
Graphics
Graphics 1 x DisplayPort 1 x HDMI™ port Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. Supports max. 8K@30Hz as specified in DisplayPort 1.4. Supports 4K@60Hz as specified in HDMI 2.1.
Others
Bundled Software ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving ASUS AI Advisor ASUS Driver Hub ASUS GlideX TurboV Core ASUS CPU-Z Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey
Special Features ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED Core - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Pre-mounted I/O shield - SafeSlot Aura Sync - Addressable RGB Gen 2 headers
Warranty
Manufacturing Warranty 3 Years
Description

Asus B850 MAX GAMING WIFI W AM5 ATX Motherboard

The Asus B850 MAX GAMING WIFI W AM5 ATX Motherboard is a performance-driven solution designed for gamers and power users who demand cutting-edge features and next-gen compatibility. Built on the powerful AMD B850 chipset, this ATX motherboard supports AMD Ryzen 9000, 8000, and 7000 Series processors through the latest AM5 socket, making it a future-proof investment. The Asus B850 MAX GAMING WIFI W ATX Motherboard supports up to 256GB DDR5 RAM across four DIMM slots, delivering exceptional memory speeds up to 8000+ MT/s (OC) and full support for ECC and non-ECC unbuffered memory, dual-channel architecture, AMD EXPO, and ASUS AEMP profiles. Designed for high-performance expansion, the Asus B850 MAX GAMING WIFI W Motherboard includes PCIe 5.0 and PCIe 4.0 slots, and three ultra-fast M.2 slots, alongside four SATA 6Gb/s ports with full RAID support. For superior graphics, it offers HDMI 2.1 and dual USB4 Type-C ports, capable of supporting 4K@60Hz output, ideal for immersive visual experiences. Connectivity is top-tier with Realtek 2.5Gb Ethernet, Wi-Fi 6, and Bluetooth 5.2, ensuring fast and reliable networking. The Asus B850 MAX GAMING WIFI W AM5 ATX Motherboard also excels in audio with Realtek 7.1 Surround Sound High Definition Audio CODEC, jack-detection, and premium audio components for high-fidelity playback up to 24-bit/192 kHz. The rear I/O panel provides 10 USB ports, including 2 USB4 (40Gbps) and fast-charging USB Type-C options, while the internal I/O offers additional fan headers, RGB headers, USB headers, and TPM support. Designed for effortless DIY builds, it features ASUS Q-Design, pre-mounted I/O shield, BIOS FlashBack, and robust thermal solutions like VRM and M.2 heatsinks. Integrated with ASUS Armoury Crate, Aura Sync, and multiple software utilities, the Asus B850 MAX GAMING WIFI W delivers a complete package of performance, reliability, and aesthetics, making it a top choice for gamers and content creators building with the AM5 platform.


Buy Asus B850 MAX GAMING WIFI W AM5 ATX Motherboard from preKite

In Bangladesh, you can get the original Asus B850 MAX GAMING WIFI W AM5 ATX Motherboard from preKite. We have a large collection of the latest Asus Motherboard to purchase for your Desktop PC. Order online or visit your nearest preKite shop to get yours at the lowest price. The Asus B850 MAX GAMING WIFI W AM5 ATX Motherboard comes with 3 years of warranty.
